Deployment Overview

​

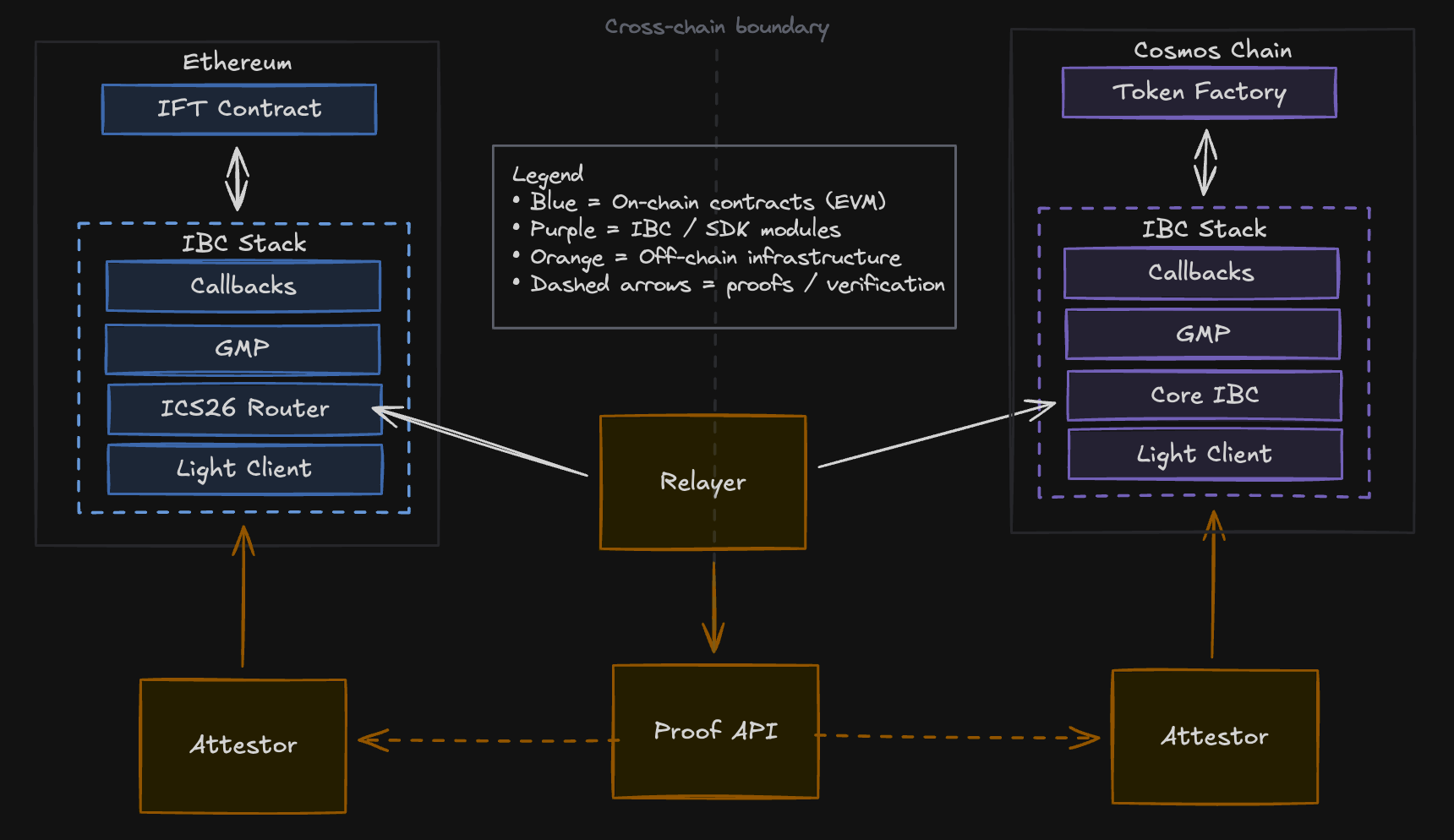

System Architecture

• Blue = on-chain contracts (EVM)
• Purple = IBC / SDK modules
• Orange = off-chain infrastructure
• Dashed arrows = proofs / verification

​

Components

​

On-Chain

• Core IBC Modules — Core IBC stack including the ICS 26 Router, ICS 26 Application Callbacks, and ICS 27 GMP.
  • Specifications: cosmos/ibc
  • Implementations: cosmos/ibc-go
• Attestor Light Client — An attestor-based IBC light client that verifies IBC packets using quorum-signed ECDSA attestations from a fixed set of trusted signers, implemented in Go.
  • Specification: cosmos/ibc ics-026-application-callbacks
  • Implementation: cosmos/ibc-go attestor light client
• Token Factory — Chain-dependent module that handles core asset logic and is configured with the IBC stack to initiate outgoing and/or process incoming IBC packets.

• Core IBC Contracts — Core IBC contracts including the ICS 26 Router and ICS 27 GMP + Callbacks contracts.
  • Specifications: cosmos/ibc
  • Implementations: cosmos/solidity-ibc-eureka
• Attestor Light Client — An attestor-based IBC light client that verifies IBC packets using quorum-signed ECDSA attestations from a fixed set of trusted signers, implemented in Solidity.
  • Specification: cosmos/solidity-ibc-eureka design
  • Implementation: cosmos/solidity-ibc-eureka attestation
• Interchain Fungible Token (IFT) — A set of rules and interfaces for creating and managing fungible tokens that can be transferred across different blockchain networks using ICS-27 GMP.
  • Implementation: cosmos/solidity-ibc-eureka IFTBase.sol

​

Off-Chain

• Attestation Service — A lightweight, blockchain-agnostic attestation service that provides cryptographically signed attestations of blockchain state for IBC cross-chain communication. See the Attestor documentation for details.
  • Implementation: cosmos/ibc-attestor (Rust service in apps/ibc-attestor/)
• Proof API — A gRPC server that can be queried by a client to get the data needed to generate transaction(s) for relaying IBC packets.
  • Implementation: cosmos/solidity-ibc-eureka proof-api
• Relayer — A standalone, production-ready, request-driven relayer service for the IBC v2 Protocol. See the Relayer documentation for details.

​

Example IBC Transfer Flows

​

Cosmos to EVM

1. The user or client submits a transaction on the Cosmos source chain containing a burn/transfer message to the Token Factory module.
   • The Token Factory module calls the IBC GMP module to make a GMP call to the mint function on the EVM destination chain’s IFT contract.
   • The GMP module calls the core IBC module to send a packet with the GMP payload to the ICS 26 Router on the EVM destination chain.
   • The IBC modules emit the relevant packet information as an event.
   • The Attestor continuously monitors blocks for relevant IBC events, parses a valid IBC transfer packet, and generates a signed attestation with associated blockchain state.
2. The client submits a request to the relayer service to relay the IBC transfer packet.
   • The relayer requests data necessary to submit the IBC transaction and proof on the destination chain from the Proof API.
   • The Proof API queries each configured Attestor, aggregates signed attestations until the quorum threshold is reached, generates the IBC RecvPacket data, and responds to the relayer.
3. The relayer submits the IBC RecvPacket transaction to the EVM destination chain.
   • The ICS 26 Router contract parses the packet and executes core validation logic (sequencing, timeouts, etc.), then routes it to the relevant light client contract.
   • The light client contract validates the IBC packet.
   • The ICS 26 Router routes the validated packet to the GMP contract, which executes the IFT contract’s mint function.
   • The IFT contract mints and transfers the token to the destination address specified in the GMP payload.

​

EVM to Cosmos

1. The user or client submits a transaction on the EVM source chain calling iftTransfer on the IFT contract.
   • The IFT contract burns the tokens from the sender and calls the ICS 27 GMP contract with the necessary information for an IBC mint/burn transfer packet.
   • The GMP contract calls the IBC Router contract to send a GMP call to mint tokens on the Cosmos destination chain.
   • The IBC contracts emit the relevant packet information as an event.
   • The Attestor generates a signed attestation of the packet and associated blockchain state.
2. The client submits a request to the relayer service to relay the IBC transfer packet.
   • The relayer requests data from the Proof API, which aggregates attestations and generates IBC RecvPacket data.
3. The relayer submits the IBC RecvPacket transaction to the Cosmos destination chain.
   • The core IBC modules parse the packet and execute core validation logic (sequencing, timeouts, etc.), then route it to the relevant light client module.
   • The light client module validates the IBC packet.
   • The IBC Core modules route the validated packet to the GMP application module.
   • The GMP module calls the Token Factory module to mint tokens to the destination address specified in the GMP payload.
